VIP-808-KMV2-DE 8 port Dual Head KVM Switch
VIP-808-KMV2-DE
Control 8-64 PCs with one keyboard, mouse and 2 monitors
8 port Dual Head KVM Switch, the VIP-808 MegaSwitch
Multi-Head Models Available

Description:

The VIP-808 "MegaSwitch""Dual-Head KVM switch allows one PS/2 keyboard, PS/2 mouse and two monitors to control up to 64 dual head / dual video PCs. The scalability of this KVM Switch makes it the perfect solution for KVM switch applications requiring access to large numbers of dual monitor computers and servers, without the clutter and expense of additional keyboards, mice and monitors. The VIP-808 Dual-Head KVM Switch supports all popular PS/2 keyboards and mice, including Microsoft IntelliMouse", and video resolution of 1600 by 1200 at 75Hz per monitor.

The unique architecture of the VIP-808 provides a dedicated microprocessor for each PC. This feature makes it possible to "hot-plug" keyboards and mice, at any time, and power the connected PCs up and down, in any order. At the heart of the MegaSwitch is Vetra's advanced keyboard and mouse emulation technology which provides error free boot up and mouse driver loading for each connected PC, and allows the MegaSwitch to operate transparently with all PCs, PC operating systems, and applications. All VIP-808 Dual-Head KVM Switch models are powered by the connected PCs so no external power supply is required.

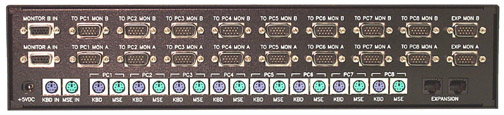

Non-expandable MegaSwitch models can control up to eight PCs, and the expandable models may be cascaded to a maximum of eight units, to access a total of 64 PCs. Expansion is accomplished by assigning a unique sequential "bank" number to each MegaSwitch in the chain via the bank select switch located on the front panel of the KVM switch. A "bank" consists of a MegaSwitch and its connected PCs. Connections between banks are made using inexpensive "off the shelf" RJ45 and video cables connected to the rear of the units.

The VIP-808 Dual-Head KVM Switch comes in a variety of standard configurations, is rugged and compact in design and easy to install and operate. For applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ).

All Vetra KVM Switches are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3-year Warranty.

For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com

OPERATION:

All VIP-808 "MegaSwitch" Dual-Head KVM switch models can select the active PC via a keyboard "hot-key" sequence ( [scroll lock] + [1] for PC1, or [scroll lock] + [3] for PC3, etc ) or by a push button(s) located on the front panel of the KVM Switch. Only "powered" PCs may be selected.

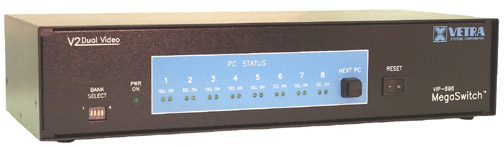

The Direct Entry models (as indicated by -DE in the model number) have an individual push button switch for each selectable PC channel as well as an "auto-scan" mode ([scroll lock] +"A"). Auto-scan sequentially switches through each connected and powered PC, pausing for 5 seconds at each PC before automatically switching to the next PC. The selection of any powered PC channel terminates the auto-scan mode. The non-DE models have a single push button (NEXT PC) which provides manual sequential switching through all PC channels. Each time the "NEXT PC" button is depressed it switches to the next PC channel in the cycle.

In all cases on either model, when a PC channel is selected, an LED on the front panel illuminates to indicate the selected PC while additional front panel LED's indicate which PC channels are powered. Upon selection, the intelligence in the MegaSwitch correctly sets the keyboard's status indicators, CAPS, SCROLL, and NUM Lock, as these settings may be different for each PC. The keyboard and/or mouse may be disconnected and re-connected (hot-plugged), or exchanged at any time without having to power down the connected PC's. This feature is useful if a connected device fails during a critical application.

Features:

Designed and manufactured in the USA for use around the world
Backed by a Limited 3 Year Warranty
Supports all Dual-Head / Dual Monitor configurations
Hot Plug feature allows keyboard and mice to be swapped at any time!
Auto-scan feature sequentially scans all powered PC channels
Expandable models may be cascaded to 64 PCs
Supports all popular keyboards and mice including Microsoft IntelliMouse"
Supports 1600 by 1200 at 75Hz video resolution per monitor
The MegaSwitch is completely transparent to all PC's, operating systems, and programs
Each PC boots error free, and PC's can be powered up or down in any sequence
The VIP-808 Dual-Head KVM Switch is powered by the connected PC's, no external power supply is required
Keyboard LED's and parameters are correctly set when switched from PC to PC
PC selection via the industry's easiest hot key selection sequence, no scrolling through complicated menus
Uses inexpensive standard cables, eliminating the need for costly multi-port cables
A 2U height rack mount tray is available for rack mount installation
